St. John Lutheran Church
Libertyville, Illinois

stjohnlib_after_large01
stjohnlib_after_large01

press to zoom
stjohnlib_after_large02
stjohnlib_after_large02

press to zoom
stjohnlib_after_large04
stjohnlib_after_large04

press to zoom
stjohnlib_after_large01
stjohnlib_after_large01

press to zoom
1/4

Date

2010

Client Website

Manual Compass

Pedal Compass

The organ project at St. John's was done in conjunction with an acoustical renovation of the sanctuary. The majority of the Great organ is placed in the center of the balcony, while the Swell is in an expression chamber to the left of the case. This is an improvement on the old organ, which was entirely in chambers with no pipes in the balcony. Select ranks of the previous instrument were restored for this project

GREAT

16'       Gedecktbass

8'         Principal

8'         Hohlflote

8'         Viole

8'         Bourdon

4'         Octave

4'         Koppelflote

2'         Fifteenth

IV        Mixture 1 1/3'  (draws 2')

16'       Posaune

8'         Trumpet

4'         Clairon

Tremulant

                 61 pipes

                 61 pipes

                 61 pipes

(Sw)         --

                 61 pipes

                 61 pipes

                 61 pipes

                 61 pipes

                 183 pipes

                 61 pipes

(ext. 16')   12 pipes

(ext. 16')   12 pipes

SWELL      (enclosed)

16'       Contra Viole

8'         Flute Harmonique

8'         Viole

8'         Viole Celeste

4'         Geigen Principal

4'         Rohrflote

2 2/3'  Nasat

2'         Gemshorn

1 3/5'  Terz

16'       Fagott

8'         Oboe

Tremulant

(tc)              --

                   61 pipes

                   61 pipes

 (tc)             49 pipes

                   61 pipes

                   61 pipes

                   61 pipes

                   61 pipes

                   61 pipes

                   61 pipes

(ext. 16')     12 pipes

PEDAL

32'        Resultant

16'        Subbass

16'        Gedecktbass

8'          Principal

8'          Bourdon

8'          Hohlflote

8'          Viole

4'          Choralbass

4'          Flute

16'        Posaune

8'          Trompete

4'          Clairon

                   --

                   32 pipes

(Gt)            --

                   32 pipes

(ext. 16')     12 pipes

(Gt)             --

(Sw)            --

(ext. 8')       12 pipes

(ext. 16')     12 pipes

(Gt)             --

(Gt)             --

(Gt)             --

Before

stjohnlib_before_large01
stjohnlib_before_large01

press to zoom
stjohnlib_before_large02
stjohnlib_before_large02

press to zoom
stjohnlib_before_large05
stjohnlib_before_large05

press to zoom
stjohnlib_before_large01
stjohnlib_before_large01

press to zoom
1/6

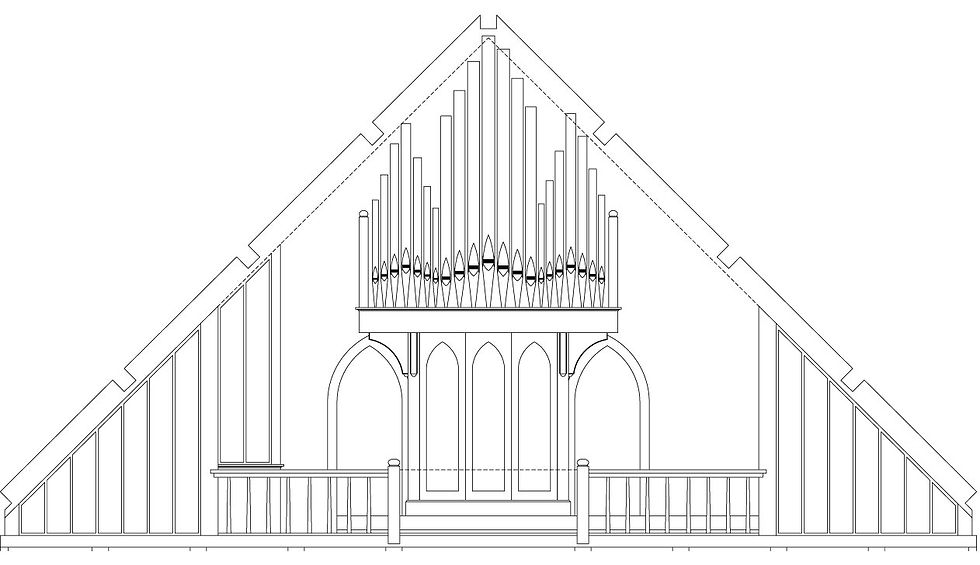

Construction

stjohnlib_design_large01
stjohnlib_design_large01

press to zoom
stjohnlib_design_large07
stjohnlib_design_large07

press to zoom
stjohnlib_const_large04
stjohnlib_const_large04

press to zoom
stjohnlib_design_large01
stjohnlib_design_large01

press to zoom
1/8
